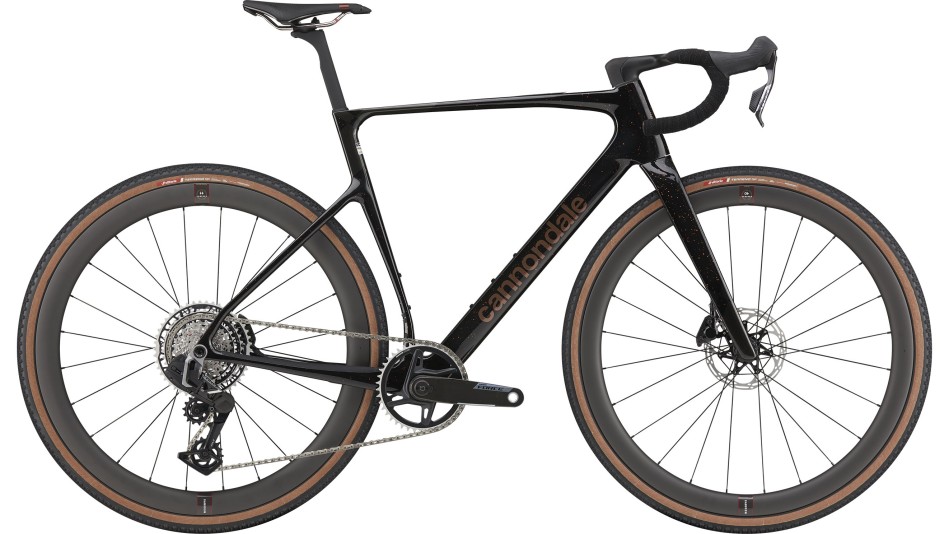

Cannondale SuperX Carbon 1 2025 Copper Ore Gravel Bike

Available with Cannondale in the sizes shown above. Expect delivery within 3-4 working days of placing an order.

A pure gravel race machine focused on one thing: taking the lead and staying there. Ok, two things…

Gravel Race Royalty. SuperX 1 is built for those who seek podiums, not participation medals. With its lightweight carbon frame, refined aerodynamic efficiency, and Reserve 40|44 GR wheels, this bike transforms every watt of power into raw speed. SRAM Force XPLR with a power meter ensures precise shifting and data to match your ambitions, while Vittoria Terreno 700×40c tires grip everything from dusty paths to muddy chaos. Flat-mount disc brakes bring you back to earth when needed, and the carbon SystemBar R1 is properly sleek and race-ready. SuperX 1 is relentless speed and precision, built to keep the lead.

Specification

Frame	SuperX Carbon, Proportional Response construction, internal cable routing, 12×142mm thru-axle, UDH BSA 68mm threaded BB, flat mount disc, integrated seatpost binder
Fork	SuperX Carbon, integrated crown race, 12×100mm thru-axle, flat mount disc, internal routing, 1-1/8” to 1-1/2” Delta steerer, 55mm offset
Headset	Integrated, 1-1/8” – 1.5”
Rear Derailleur	SRAM Force XPLR AXS
Shifters	SRAM Force
Chain	SRAM Force
Crank	Force XPLR AXS 42 w/ Power Meter
Cassette	SRAM Force XPLR, XG-1371, 10-46, 13-speed
Bottom Bracket	SRAM DUB BSA Road 68 Wide
Brakes	SRAM FORCE AXS, Centerline X 160/160mm centerlock rotors
Front Hub	DT Swiss 350, 12×100mm centerlock
Rear Hub	DT Swiss 350, 12×142mm centerlock
Rims	Reserve 40/44 GR, Carbon, Turbulent Aero tech, 24h, tubeless ready
Spokes	Sapim CX-Ray Aero straight pull
Tyres	Vittoria Terreno T50, 700×40c, tubeless ready
Handlebar	Cannondale SystemBar R-One – low drag, full carbon integrated bar/stem, internal routing
Stem	Cannondale SystemBar R-One – low drag, full carbon integrated bar/stem, internal routing
Bar Tape	Cannondale Bar Tape, 3.5mm
Saddle	Prologo Dimension AGX Tirox
Seatpost	Cannondale C1 Aero 27 Carbon, SmartSense compatible, 0mm offset (46cm), 20mm offset (51-61cm)
Connectivity	Cannondale Wheel Sensor
Extras	Reserve Fillmore valves, SRAM AXS charger

Specifications are subject to change without notice

Size Guide

Frame Size	Minimum Height	Maximum Height
46	152cm (4’11”)	162cm (5’4”)
51	160cm (5’3”)	170cm (5’7”)
54	165cm (5“5”)	175cm (5’9”)
56	172cm (5’7”)	182cm (5’11”)
58	177cm (5’9”)	187cm (6’2”)
61	182cm (6’0”)	193cm (6’4”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Frame Size	46	51	54	56	58	61
A – Seat Tube Length cm	44.0	48.8	52.4	54.6	56.6	58.9
B – Top Tube Horizontal cm	51.0	52.1	54.0	55.8	57.5	59.4
C – Top Tube Actual cm	47	48.4	50.4	52.1	53.8	55.6
D – Head Tube Angle	70.0°	71.0°	71.0°	71.0°	71.0°	71.0°
E – Seat Tube Angle	74.3°	74.3°	73.7°	73.3°	72.9°	72.3°
F – Standover cm	74.6	78.2	81.2	83.2	83.6	84.9
G – Head Tube Length cm	8.6	10.8	13.2	15.3	17.7	19.8
H – Wheelbase cm	99.8	100.5	102.0	103.4	104.9	106.2
I – Front Center cm	58.8	59.3	60.7	62.1	63.6	64.8
J – Chain Stay Length cm	42.2	42.2	42.2	42.2	42.2	42.2
K – Bottom Bracket Drop cm	7.7	7.2	6.9	6.9	6.7	6.7
L – Bottom Bracket Height cm	28.3	28.8	29.0	29.0	29.3	29.3
M – Fork Rake cm	5.5	5.5	5.5	5.5	5.5	5.5
N – Trail cm	7.2	6.5	6.5	6.5	6.5	6.5
0 – Stack cm	51.5	53.5	55.5	57.5	59.5	61.5
P – Reach cm	36.5	37.1	37.8	38.5	39.2	39.8
Q – Axle to Crown cm	40.0	40.0	40.0	40.0	40.0	40.0

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
