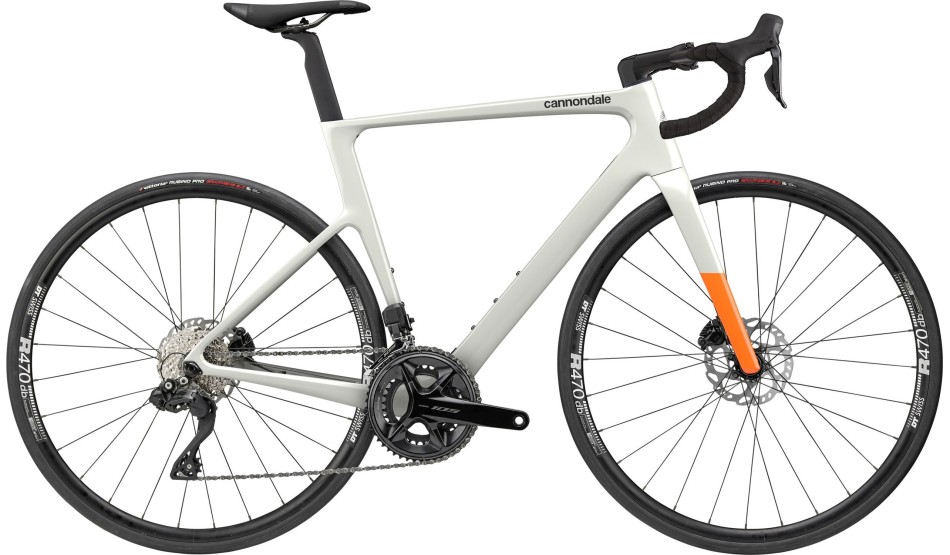

Cannondale SuperSix Evo 3 2024 Chalk Road Bike

56cm in stock now! Delivery in 2-3 working days. Other sizes shown available with Cannondale. Expect delivery within 4-5 working days of placing an order.

The all-new SuperSix EVO destroys expectations. So light, so fast, and so aero, it defies logic. This is a machine built to make you faster everywhere. Speed has evolved.

Sleek, elegant and purposeful. Hours in the wind tunnel and countless iterations of computational fluid dynamic modeling stripped away everything that wasn’t fast-shaped, leaving a frame design that catches the eye, while shedding the wind.

Lightweight, low-drag SuperSix EVO carbon frameset – the ideal blend of speed, handling and comfort

Shimano 105 Di2 12-speed – Shimano’s workhorse high-performance electronic shifting road group

DT-Swiss R470 rims – light, wide and reliable aluminum wheels

Vision Trimax Aero bars and Cannondale C1 Conceal stem – ergonomic, low-drag cockpit with hidden cables

Specification

Frame	SuperSix EVO Carbon,integrated cable routing w/ Switchplate, 12×142 Syntace thru-axle, BSA 68mm threaded BB, flat mount disc, integrated seat binder, SmartSense compatible
Fork	SuperSix EVO Carbon, integrated crown race, 12×100mm Syntace thru-axle, flat mount disc, internal routing, 1-1/8” to 1-1/4” Delta steerer, 55mm offset (44-54cm), 45mm offset (56-61cm)
Rims	DT Swiss R470 db, 28h
Hubs	(F) Formula CL-712, 12×100mm centerlock / ® Formula RXC-400, 12×142mm centerlock
Spokes	Stainless Steel, 14g
Tyres	Vittoria Rubino Pro Bright Black, 700 × 25c, reflective strip
Pedals	Not included
Crank	Shimano 105 R7100, 50/34
Bottom Bracket	Shimano BB-RS500, BSA
Chain	Shimano 105, 12-speed
Cassette	Shimano 105 R7100, 11-30, 12-speed
Front Derailleur	Shimano 105 Di2 R7170
Rear Derailleur	Shimano 105 Di2 R7150
Shifters	Shimano 105 Di2 R7170, wireless, 2×12-speed
Handlebar	Vision Trimax Aero
Grips	Cannondale Bar Tape, 3.5mm
Stem	Cannondale C1 Conceal, Alloy, 31.8, -6°
Headset	Integrated, 1-1/8” – 1-1/4”
Brakes	Shimano 105 R7170 hydraulic disc, 160/160mm RT70 rotors
Saddle	Prologo Nago RS STN, Stainless Steel Rails
Seatpost	Cannondale C1 Aero 40 Carbon, 0mm offset (44-48cm), 20mm offset (51-61cm)
Connectivity	Cannondale Wheel Sensor
Extras	Shimano EC300 charging connector

Specifications are subject to change without notice

Size Guide

Frame Size	Minimum Height	Maximum Height
44	154cm (5’1”)	165cm (5’5”)
48	160cm (5’3”)	170cm (5’7”)
51	165cm (5’5”)	175cm (5’9”)
54	170cm (57”)	180cm (5’9”)
56	177cm (5’8”)	185cm (6’1”)
58	182cm (6’0”)	193cm (6’4”)
61	190cm (6’3”)	200cm (6’7”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Frame Size	44	48	51	54	56	58	61
A – Seat Tube Length	40.0cm	43.8cm	47.7cm	51.5cm	53.4cm	56.7cm	60.0cm
B – Top Tube Horizontal	51.2cm	52.0cm	52.8cm	54.6cm	56.2cm	57.8cm	60.3cm
C – Top Tube Actual	46.9cm	47.9cm	48.9cm	50.9cm	52.3cm	54.1cm	56.4cm
D – Head Tube Angle	70.9°	71.2°	71.2°	71.2°	73.0°	73.0°	73°
E – Seat Tube Angle	74.3cm	74.3cm	74.3°	73.7°	73.3°	72.9°	72.3°
F – Standover	69.8cm	72.7cm	75.6cm	78.8cm	80.7cm	83.6cm	86.6cm
G – Head Tube Length	10.0cm	11.4cm	13.0cm	15.4cm	16.5cm	18.8cm	22.0cm
H – Wheelbase	98.1cm	98.7cm	99.6cm	101.0cm	99.4cm	100.7cm	102.4cm
I – Front Center	58.2cm	58.9cm	59.8cm	61.1cm	59.4cm	60.7cm	62.4cm
J – Chain Stay Length	41.0cm	41.0cm	41.0cm	41.0cm	41.0cm	41.0cm	41.0cm
K – Bottom Bracket Drop	7.4cm	7.4cm	7.4cm	7.2cm	7.2cm	6.9cm	6.9cm
L – Bottom Bracket Height	26.8cm	26.8cm	26.8cm	27.1cm	27.1cm	27.3cm	27.3cm
M – Fork Rake	5.5cm	5.5cm	5.5cm	5.5cm	4.5cm	4.5cm	4.5cm
N – Trail	6.0cm	5.8cm	5.8cm	5.8cm	5.8cm	5.8cm	5.8cm
0 – Stack	50.5cm	52.0cm	53.5cm	55.5cm	57.5cm	59.5cm	62.5cm
P – Reach	37.0cm	37.4cm	37.8cm	38.4cm	38.9cm	39.5cm	40.3cm

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
