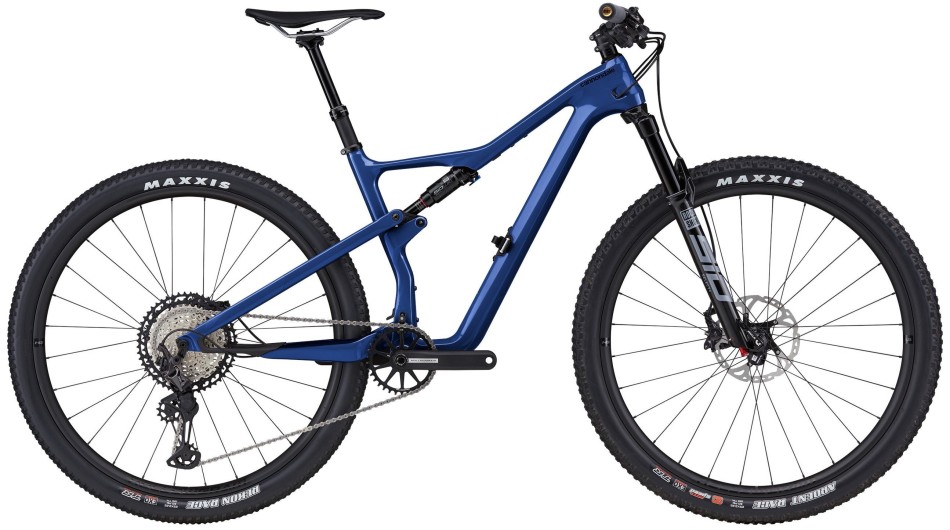

Cannondale Scalpel Carbon SE 1 2024 Abyss Cross Country Bike

Available with Cannondale in the sizes shown above. Expect delivery within 3-4 working days of placing an order.

Scalpel SE is the ultimate marathon racer and high-speed trail slayer. World Cup fast and all-mountain fierce – this is next-level cross-country mountain bike performance.

Scalpel SE’s patented FlexPivot suspension results in more grip, more control, and more speed. 120mm of plush travel works so well that it feels like so much more – meaning all-day singletrack sessions are a gas.

Scalpel’s progressive XC attitude has evolved even further with a slack and stable 67˚ headtube angle – combined with shorter stems, bigger tires, dropper posts and bigger travel: if you love riding trails fast, precise and in full control, then this is the bike for you.

Don’t settle for just two. Pick all three. With its full carbon frame and new 4-bar FlexPivot suspension, the Scalpel is one of the lightest and stiffest full-suspension mountain bikes available. Built light to go fast = built right to have a blast.

Specification

Frame	Scalpel SE Carbon, 120mm travel, Proportional Response Tuned, FlexPivot Chainstay, PF30-83, Tapered Headtube, Speed Release 12mm thru axle, Ai offset, Stash compatible
Fork	RockShox SID Select+ RL, 120mm, Debonair, 15×110mm thru-axle, tapered steerer, 44mm offset
Rear Shock	RockShox SIDLuxe Select+, 2-Pos mode adjust, adjustable rebound
Rims	HollowGram 25, Superlight Hi-Impact Carbon, 28h, 25mm IW, tubeless ready
Hubs	(F) HollowGram, 15×110mm thru-axle / ® HollowGram w/DT Swiss Star Ratchet internals, 12×148mm
Spokes	DT Swiss Competition Race, straight-pull
Tyres	(F) Maxxis Ardent Race, 29 × 2.35”, EXO Protection, tubeless ready, ® Maxxis Recon Race, 29 × 2.25”, EXO Protection, tubeless ready
Pedals	Not included
Crank	HollowGram, BB30a, OPI SpideRing, 32T, Ai offset
Bottom Bracket	Cannondale Alloy PressFit30
Chain	Shimano SLX, 12-speed
Cassette	Shimano XT, 10-51, 12-speed
Shifters	Shimano XT, 12-speed
Handlebar	Cannondale 1 Riser, Carbon, 31.8mm, 9° sweep, 4° rise, 780mm
Grips	Cannondale XC Silicone
Stem	Cannondale 1, 7075 Alloy, 1-1/8”, 31.8, 7°
Headset	Integrated Sealed Bearing, Tapered
Brakes	Shimano XT hydraulic disc, 180/160mm XT rotors
Saddle	Cannondale Scoop Flat Elite, cro-mo rails
Seatpost	Cannondale DownLow Dropper, internal routing, 31.6, 100mm (S), 125mm (M-L), 150mm (XL)
Connectivity	Cannondale Wheel Sensor
Extras	Stash Kit (Fabric 8-in-1 Mini Tool and Dynaplug tubeless puncture repair tool), Tubeless valve stems

Specifications are subject to change without notice

Size Guide

Frame Size	Minimum Height	Maximum Height
Small	154cm (5’1”)	165cm (5’5”)
Medium	162cm (5’4”)	175cm (5’9”)
Large	172cm (5’8”)	182cm (6’0”)
X Large	180cm (5’11”)	195cm (6’5”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Frame Size	Small	Medium	Large	X Large
A – Seat Tube Length	43.0cm	44.0cm	48.0cm	52.0cm
B – Top Tube Horizontal	58.0cm	60.2cm	62.5cm	64.8cm
C – Top Tube Actual	53.1cm	55.3cm	57.7cm	60.3cm
D – Head Tube Angle	67.0°	67.0°	67.0°	67.0°
E – Seat Tube Angle	N/A	N/A	N/A	N/A
E’ – Seat Tube Angle Effective	74.0°	74.0°	74.0°	74.0°
F – Standover	75.5cm	75.7cm	75.8cm	76.0cm
G – Head Tube Length	9.5cm	10.5cm	11.5cm	12.5cm
H – Wheelbase	112.5cm	114.8cm	117.2cm	119.6cm
I – Front Center	69.0cm	71.4cm	73.8cm	76.2cm
J – Chain Stay Length	43.6cm	43.6cm	43.6cm	43.6cm
K – Bottom Bracket Drop	3.2cm	3.2cm	3.3cm	3.3cm
L – Bottom Bracket Height	34.4cm	34.4cm	34.4cm	34.4cm
M – Fork Rake	4.4cm	4.4cm	4.4cm	4.4cm
N – Trail	11.2cm	11.2cm	11.2cm	11.2cm
0 – Stack	59.2cm	60.2cm	61.1cm	62.1cm
P – Reach	41.0cm	43.0cm	45.0cm	47.0cm

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
