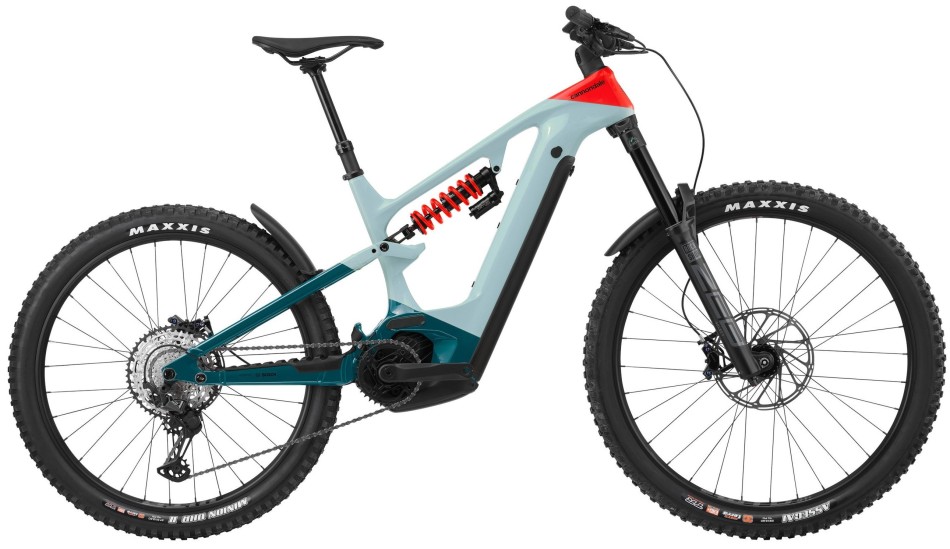

Cannondale Moterra Neo LT Carbon 2 2024 Mint eMTB

Breaking Boundaries of how an E-MTN bike handles, Moterra Neo LT is in a league of its own.

Availability: In stock

Product Name Price Qty
Cannondale Moterra Neo LT Carbon 2 2024 Small Mint eMTB

RRP: £7,250.00

Our price £4,709.99

Cannondale Moterra Neo LT Carbon 2 2024 Large Mint eMTB

RRP: £7,250.00

Our price £4,709.99

Cannondale Moterra Neo LT Carbon 2 2024 X Large Mint eMTB

RRP: £7,250.00

Our price £4,709.99

10% of free accessories

Get 10% of free accessories when you purchase a bike.

Excludes discounted bikes, ex-demo bikes and Cyclescheme.

Part exchange + save!

10% off your bike and accessories when you part exchange.

*Terms apply.

Price beat now

We will beat our competitors' prices!

*Terms apply.

We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.


Available with Cannondale in the sizes shown above. Expect delivery within 8-9 working days of placing an order.

Breaking Boundaries of how an E-MTN bike handles, Moterra Neo LT is in a league of its own. It’s a big, long travel e-mountain bike that rides like a snappy trail bike – agile and quick on the climbs, stable and composed on even the nastiest descents. It’s the kind of machine that makes you a better rider, wherever you ride.

With the new Bosch Performance Line CX & 750Wh battery, getting there was the easy part – now it’s time for the fun! With 170mm/165mm of travel, piggy back shock and burly build, it’s ready to give as much as you are.


Frame Moterra Neo Carbon Front Triangle, SmartForm C1 Alloy Swingarm, 160mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148×12mm thru-axle, UDH hanger, post mount brake, 1.5” – 1.8” tapered headtube, 18mm two-bolt kickstand mount
Fork RockShox Zeb Select, Charger RC, 170mm, DebonAir, 15×110mm, 44mm offset
Rear Shock RockShox Deluxe Select+, Coil, 2-Pos mode adjust, adjustable rebound
Rims WTB KOM Trail i30 TCS, 32h, tubeless ready
Hubs (F) Formula 15×110mm thru-axle / ® Shimano MT410, 12×148mm thru-axle
Spokes Stainless Steel, 14g
Tyres (F) Maxxis Assegai, 29 × 2.6”, 3C, EXO+, tubeless ready, ® Maxxis DHR II, 27.5 × 2.6”, 3C, EXO+, tubeless ready
Pedals Not included
Crank FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T
Chain Shimano SLX, 12-speed
Cassette Shimano SLX, 10-51, 12-speed
Rear Derailleur Shimano XT
Shifter Shimano SLX, 12-speed
Handlebar Cannondale 3 Riser, 6061 Alloy, 25mm rise, 8° sweep, 5° rise, 800mm
Grips Fabric FunGuy
Stem Cannondale 2, 6061 Alloy, 35mm, 0°
Headset Acros integrated sealed bearing, tapered
Brakes Magura MT5 4-piston hydraulic disc, Magura MDR-P 220/203mm, 6-bolt rotors
Display Bosch Kiox 300
Battery Bosch PowerTube 750Wh
Charger Bosch 4A
Drive Unit Bosch Performance Line CX Smart System
Saddle Fabric Scoop Shallow Sport, steel rails
Seatpost Cannondale DownLow Dropper, internal routing, 31.6, 125mm (S), 150mm (M), 170mm (L-XL)
Connectivity Cannondale Wheel Sensor
Extras Pre-installed light cable

Specifications are subject to change without notice

Size Guide

Frame Size Minimum Height Maximum Height
S 154cm (5’1”) 165cm (5’5”)
M 162cm (5’4”) 175cm (5’9”)
L 172cm (5’8”) 185cm (6’1”)
XL 182cm (6’0”) 195cm (6’5”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact


Frame Size S M L XL
A – Seat Tube Length 40.0cm 46.0cm 46.0cm 49.0cm
B – Top Tube Horizontal 58.0cm 60.2cm 63.4cm 67.1cm
C – Top Tube Actual 54.0cm 55.5cm 58.5cm 62.1cm
D – Head Tube Angle 64.0° 64.0° 64.0° 64.0°
E’ – Seat Tube Angle Effective 76.5° 76.5° 76.5° 76.5°
E – Seat Tube Angle 69.6° 69.2° 69.7° 70.2°
F – Standover 76.3cm 76.3cm 76.7cm 77.7cm
G – Head Tube Length 10.5cm 11.5cm 12.5cm 13.5cm
H – Wheelbase 121.7cm 124.2cm 127.6cm 131.5cm
I – Front Center 76.6cm 79.0cm 82.4cm 86.3cm
J – Chain Stay Length 45.2cm 45.5cm 45.5cm 45.5cm
K – Bottom Bracket Drop 1.1cm 1.1cm 1.1cm 1.1cm
L – Bottom Bracket Height 35.6cm 35.6cm 35.6cm 35.6cm
M – Fork Rake 4.4cm 4.4cm 4.4cm 4.4cm
N -Trail 13.5cm 13.5cm 13.5cm 13.5cm
0 – Stack 61.8cm 63.1cm 64.1cm 65.0cm
P – Reach 42.6cm 44.6cm 47.6cm 51.1cm

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.

Additional Information
Manufacturer Cannondale
