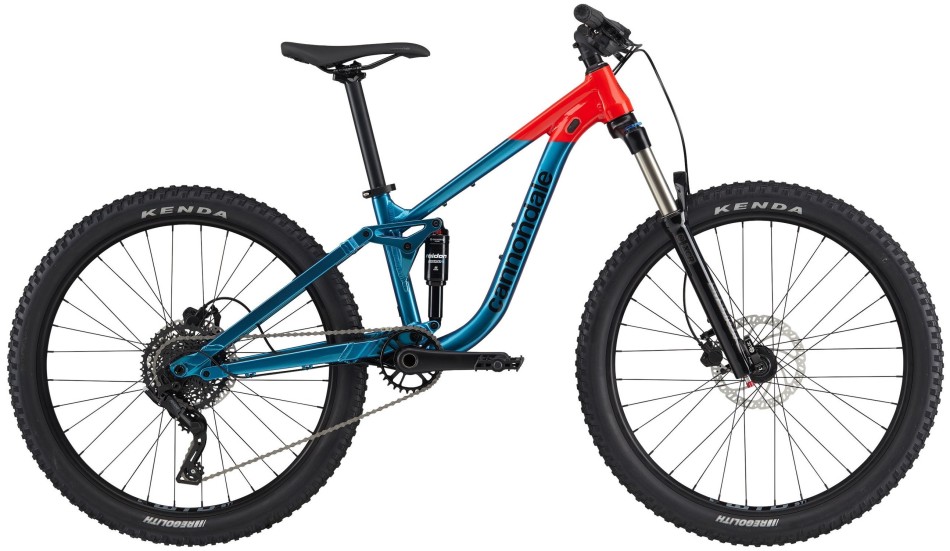

Cannondale Habit 26 2024 Teal 26" Kids Bike

Available with Cannondale in the sizes shown above. Expect delivery within 3-4 working days of placing an order.

A trail mountain bike that is primed for grinding climbs, mashing flats, and ripping descents. One for all, and all for fun!

The Habit geometry is uniquely size specific. With our Proportional Response Design, everything from the suspension layout to, the geometry — even the length of the chain stays — is completely customized by size. Performance built, just for you.

With a head tube angle of 65.5° and the seat tube set at 77.5°, you are sitting in the optimal position for powering uphill, shredding downhill, and stopping to smell the roses.

Keeping things simple and easy for the rider with threaded BBs, universal derailleur hanger, standard shock mount, internal cable routing, and an updated 55mm chain line standard for tire clearance. All designed to make it as easy as possible to live with and to love.

Specification

Frame	SmartForm C3 Alloy, 120mm travel, 1-1/8” to 1-1/2” tapered headtube, IS disc mount, StraightShot internal cable routing, dropper post compatible, BSA-73, 142×12mm thru-axle, UDH derailleur hanger
Fork	SR Suntour XCR34, 120mm travel, air spring, 12×110 Boost thru-axle, 46mm offset
Rear Shock	X-Fusion O2 Pro w/ Rebound Adjust
Rims	WTB STX i25, 32h
Hubs	(F) Formula 15×110mm thru-axle / ® Formula, 12×148mm thru-axle
Spokes	Stainless Steel, 14g
Tyres	WTB Vigilante 26×2.4”
Pedals	Cannondale Platform
Crank	Prowheel, Charm 30T
Bottom Bracket	Sealed cartridge bearing, square taper
Chain	KMC X10, 10-speed
Cassette	microSHIFT, 11-48, 10-speed
Rear Derailleur	microSHIFT Advent X
Shifter	microSHIFT Advent X, trigger style, 10-speed
Handlebar	Cannondale Riser, 6061 Alloy, 25mm rise, 8° sweep, 6° rise, 720mm
Grips	Cannondale Dual-Density
Stem	6061 Alloy, 31.8, 7°
Headset	Semi-Integrated, 1-1/8”
Brakes	Tektro M275 hydraulic disc, 160/160mm rotors
Saddle	Cannondale Stage 3
Seatpost	Cannondale 3, 6061 Alloy, 31.6×350mm

Specifications are subject to change without notice

Size Guide

Frame Size	Minimum Height	Maximum Height
One Size	137cm (4’6”)	157cm (5’2”)

We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact

Geometry

Frame Size	One Size
A – Seat Tube Length	32.5cm
B – Top Tube Horizontal	46.4cm
C – Top Tube Actual	47.41cm
D – Head Tube Angle	65.°
E’ – Seat Tube Angle Actual	76.5°
E – Seat Tube Angle Effective	78.0°
F – Standover	67.5cm
G – Head Tube Length	9.5cm
H – Wheelbase	107.3cm
I – Front Center	63.3cm
J – Chain Stay Length	42.5cm
K – Bottom Bracket Drop	0.7cm
L – Bottom Bracket Height	34.0cm
M – Fork Rake	4.6cm
N – Trail	11.1cm
O – Stack	53.8cm
P – Reach	35.0cm

Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
