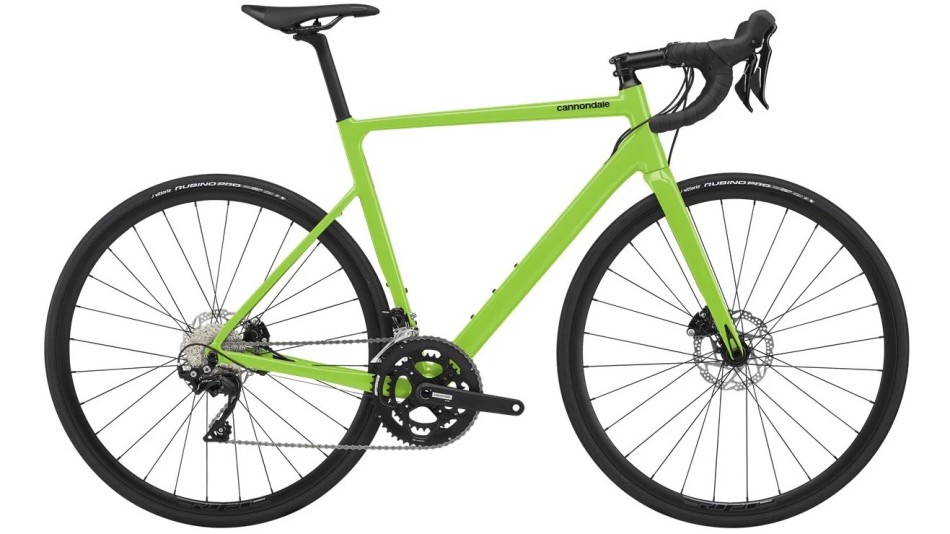

Cannondale CAAD13 Disc 105 2023 Lime Road Bike
This is the speediest, smoothest, best handling, finest performing aluminum race bike on the planet.
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
-
Burgtec 22mm x M6 Titanium Offset Shock Hardware Kit
RRP: £19.99
Our price £4.99
-
Bosch Smart System Display Interface Rear Plug
£24.99 -
Thule Rail 4 Hydration Hip Pack
RRP: £89.99
Our price £80.99
Details
Available with Cannondale in the sizes shown above. Expect delivery within 8-9 working days of placing an order.
This is the speediest, smoothest, best handling, finest performing aluminum race bike on the planet.
With every new CAAD we design, speed increases. The same can’t be said for weight. Drag-reducing tube shapes and sleek integration keeps the CAAD13 light but make it much, much faster. Dropped rear stay configuration and ample room for bigger tires delivers the best possible blend of stiff efficiency and unbeatable comfort in an alloy road racer.
Ultralight SmartForm C1 Premium Alloy Frame w/ full carbon fork
Shimano 105 hydraulic disc group / Cannondale 1 crank
HollowGram 27 KNØT seatpost / Prologo Nago RS saddle
Specification
| Frame | SmartForm C1 Premium Alloy, 12×142 Speed Release thru-axle, flat-mount disc, integrated cable routing w/ Switchplate, SAVE, BB30a, Di2 ready |
| Fork | CAAD13 Full Carbon, SAVE, 1-1/8” to 1-1/4” steerer, integrated crown race, 12×100mm Speed Release thru-axle, flat mount disc, internal routing, 55mm offset (47-54cm) 45mm offset (56-62cm) |
| Rims | DT Swiss R470 db, 28h |
| Hubs | (F) Formula CL-712, 12×100mm centerlock / ® Formula RXC-400, 12×142mm centerlock |
| Spokes | Stainless Steel, 14g |
| Tyres | Vittoria Rubino Pro Bright Black, 700 × 25c |
| Pedals | Not included |
| Crank | Shimano RS510, 50/34 |
| Bottom Bracket | Cannondale BB30 |
| Chain | Shimano HG601, 11-speed |
| Cassette | Shimano 105, 11-30, 11-speed |
| Front Derailleur | Shimano 105, braze-on |
| Rear Derailleur | Shimano 105 GS |
| Shifters | Shimano 105 hydraulic disc, 11-speed |
| Handlebar | Cannondale 3, 6061 Alloy, Compact |
| Grips | Cannondale Bar Tape, 3.5mm |
| Stem | Cannondale 3, 6061 Alloy, 31.8, 7° |
| Headset | CAAD13, integrated, 1-1/8” – 1-1/4 |
| Brakes | Shimano 105 hydraulic disc, 160/160mm RT54 rotors |
| Saddle | Fizik Aliante Delta, S-alloy rails |
| Seatpost | HollowGram 27 KNØT, Alloy, 2 bolt clamp, 330mm |
| Extras | Removable fender bridge |
Specifications are subject to change without notice
Size Guide
| Frame Size | Minimum Height | Maximum Height |
| 44 | 154cm (5’1”) | 165cm (5’5”) |
| 48 | 160cm (5’3”) | 170cm (5’7”) |
| 51 | 165cm (5’5”) | 175cm (5’9”) |
| 54 | 170cm (57”) | 180cm (5’9”) |
| 56 | 177cm (5’8”) | 185cm (6’1”) |
| 58 | 182cm (6’0”) | 193cm (6’4”) |
| 60 | 187cm (6’2”) | 193cm (6’6”) |
| 62 | 194cm (6’4”) | 200cm (6’7”) |
We have developed our size guide from our selling experience and it may differ from the manufacturers guide. Please note, this is only a guide and if you have any concerns over sizing please get in contact
Geometry
| Frame Size | 44 | 48 | 51 | 54 | 56 | 58 | 60 | 62 |
| A – Seat Tube Length | 40.4cm | 44.2cm | 48.1cm | 51.9cm | 54.0cm | 56.2cm | 58.3cm | 60.4cm |
| B – Top Tube Horizontal | 51.0cm | 52.0cm | 53.0cm | 54.6cm | 56.2cm | 57.8cm | 59.4cm | 61.1cm |
| C – Top Tube Actual | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| D – Head Tube Angle | 70.9° | 71.2° | 71.2° | 71.2° | 73.0° | 73.0° | 73.0° | 73.0° |
| E – Seat Tube Angle | 74.5cm | 74.3cm | 74.1° | 73.7° | 73.3° | 72.9° | 72.5° | 72.1° |
| F – Standover | 68.6cm | 72.3cm | 75.3cm | 79.0cm | 80.5cm | 82.9cm | 84.8cm | 86.8cm |
| G – Head Tube Length | 9.4cm | 11.4cm | 13.0cm | 15.4cm | 16.4cm | 18.8cm | 22.9cm | 23cm |
| H – Wheelbase | 97.6cm | 98.5cm | 99.4cm | 100.8cm | 99.2cm | 100.5cm | 101.6cm | 102.8cm |
| I – Front Center | 58.1cm | 58.9cm | 59.8cm | 61.1cm | 59.4cm | 60.7cm | 61.8cm | 63.00cm |
| J – Chain Stay Length | 40.8cm | 40.8cm | 40.8cm | 40.8cm | 40.8cm | 40.8cm | 40.8cm | 40.8cm |
| K – Bottom Bracket Drop | 7.9cm | 7.4cm | 7.4cm | 7.2cm | 7.2cm | 6.9cm | 6.9cm | 6.9cm |
| L – Bottom Bracket Height | 26.3cm | 26.8cm | 26.8cm | 27.1cm | 27.1cm | 27.3cm | 27.3cm | 27.3cm |
| M – Fork Rake | 5.5cm | 5.5cm | 5.5cm | 5.5cm | 4.5cm | 4.5cm | 4.5cm | 4.5cm |
| N – Trail | 6.0cm | 5.8cm | 5.8cm | 5.8cm | 5.8cm | 5.8cm | 5.8cm | 5.8cm |
| 0 – Stack | 50.5cm | 52.0cm | 53.5cm | 55.5cm | 57.5cm | 59.5cm | 61.5cm | 63.5cm |
| P – Reach | 37.0cm | 37.4cm | 37.8cm | 38.4cm | 38.9cm | 39.5cm | 40.0cm | 40.6cm |
Want to compare the size of your current bike to this one? Read our Reach and Stack guide here.
Additional Information
| Manufacturer | Cannondale |
|---|---|
| RRP | No |
