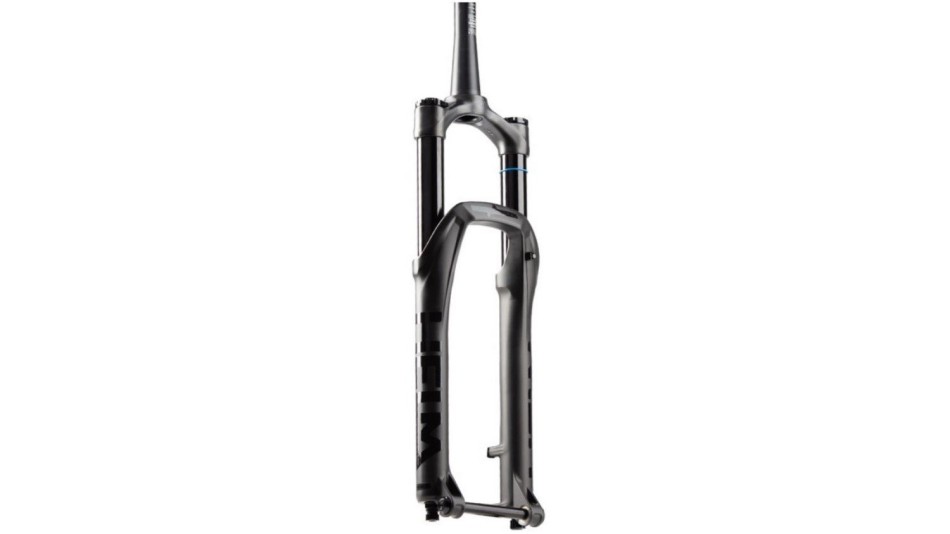

Cane Creek Helm MkII Coil 27.5" 44mm Offset
RRP: £1,099.99
Our price £1,044.99
10% of free accessories
Get 10% of free accessories when you
Excludes discounted bikes, ex-demo bikes and Cyclescheme.
We have done our best to sufficiently estimate demand. Please contact us if you have a question or wish to check availability.
Details
With the HELM MKII we re-examined every aspect of the fork’s internal design. From new SKF wiper seals, to lighter weight damper fluid, to a redesigned air spring – we tweaked and tuned and improved the HELM, all in the name of reducing friction as the fork moves through its travel. The result is the smoothest and most supple fork Cane Creek has ever made, all while providing the same incredible support and stability of the original HELM.
Features
Redesigned Air Spring – New friction reducing air piston material and a threadless air seal head for ease of maintenance
SKF Wiper Seals – Reduced friction over previous seals
Updated Damper – Lighter compression tune to increase sensitivity, 2.5wt Motorex damper oil with 11% lighter viscosity and new SKF oil seal head to reduce friction.
Specification
Wheel Size: 27.5”
Fork travel: 160mm
Damping: High Speed Compression – 10 Positions, Low Speed Compression – 17 positions, Low Speed Rebound – 10 positions
Spring: coil spring
Stanchion diameter: 35mm
Travel: Factory position at 160mm. Internal adjustment, 10mm Increments (160mm down to 130mm) 2 Travel spacers included with air fork
Max Tyre Size: 65mm Wide by 714mm tall
Axle: “D-Loc” 15mm thru axle system
Spacing: 15mm x 110 BOOST spacing
Offset: 29” – 44mm or 51mm | 27.5” – 44mm
Axle to Crown: 27.5” – 553mm @ 160mm Travel
Colour: 27.5” – Matte Black
Manufacturer | Cane Creek |
---|---|
RRP | No |
